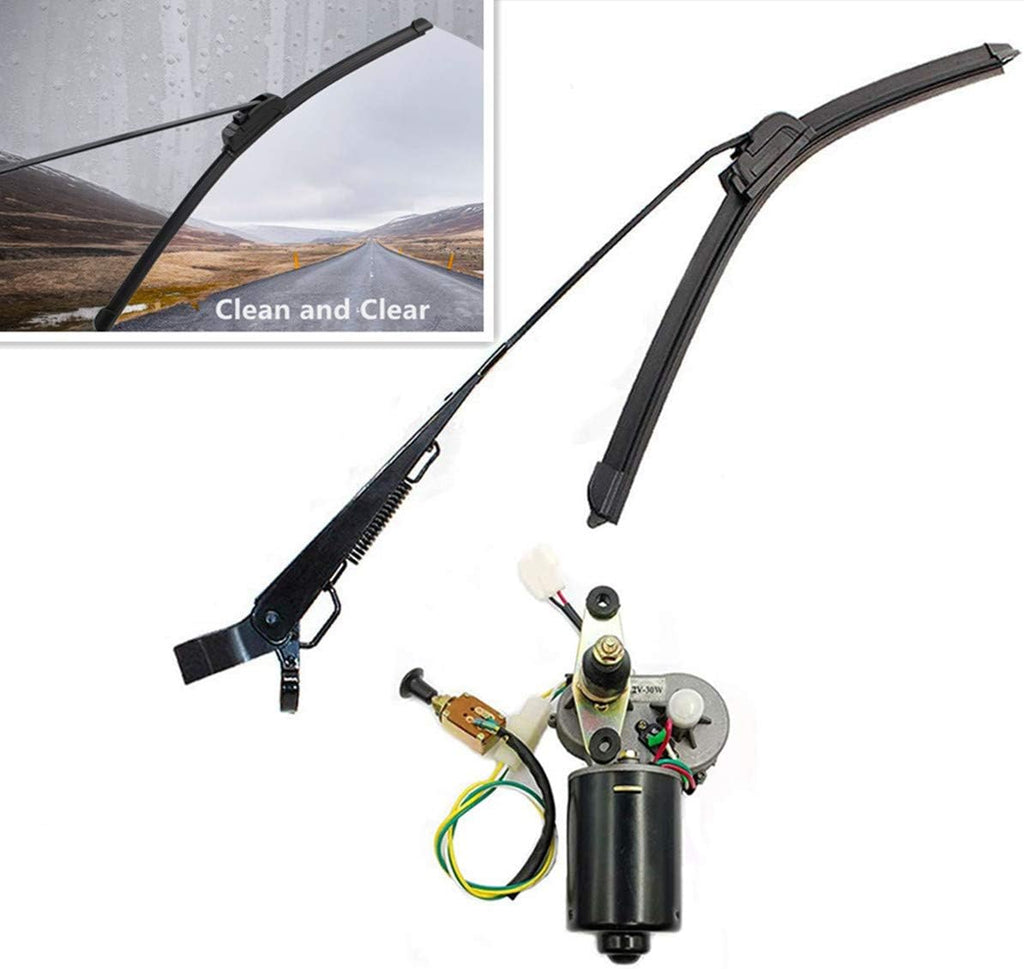

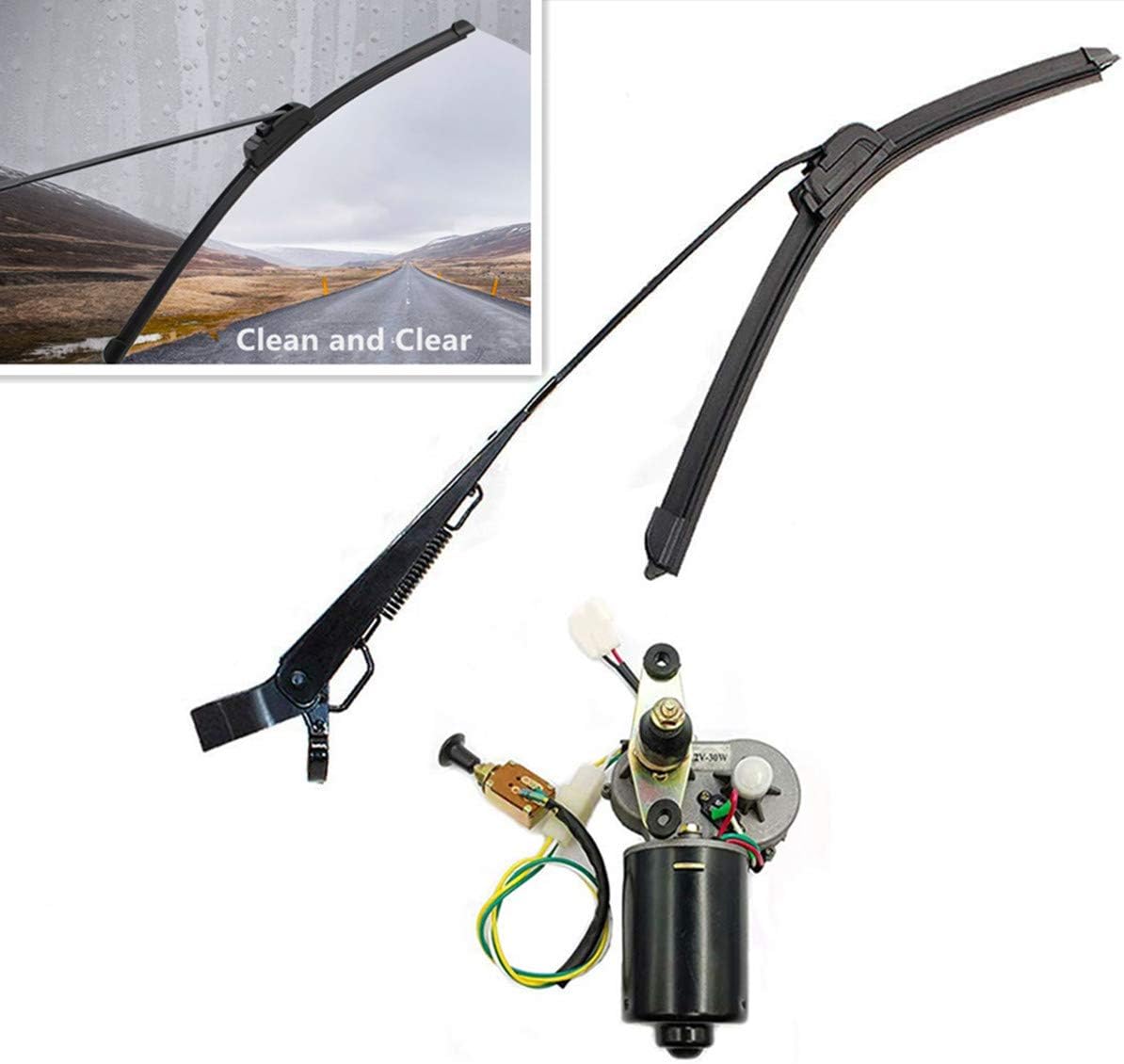

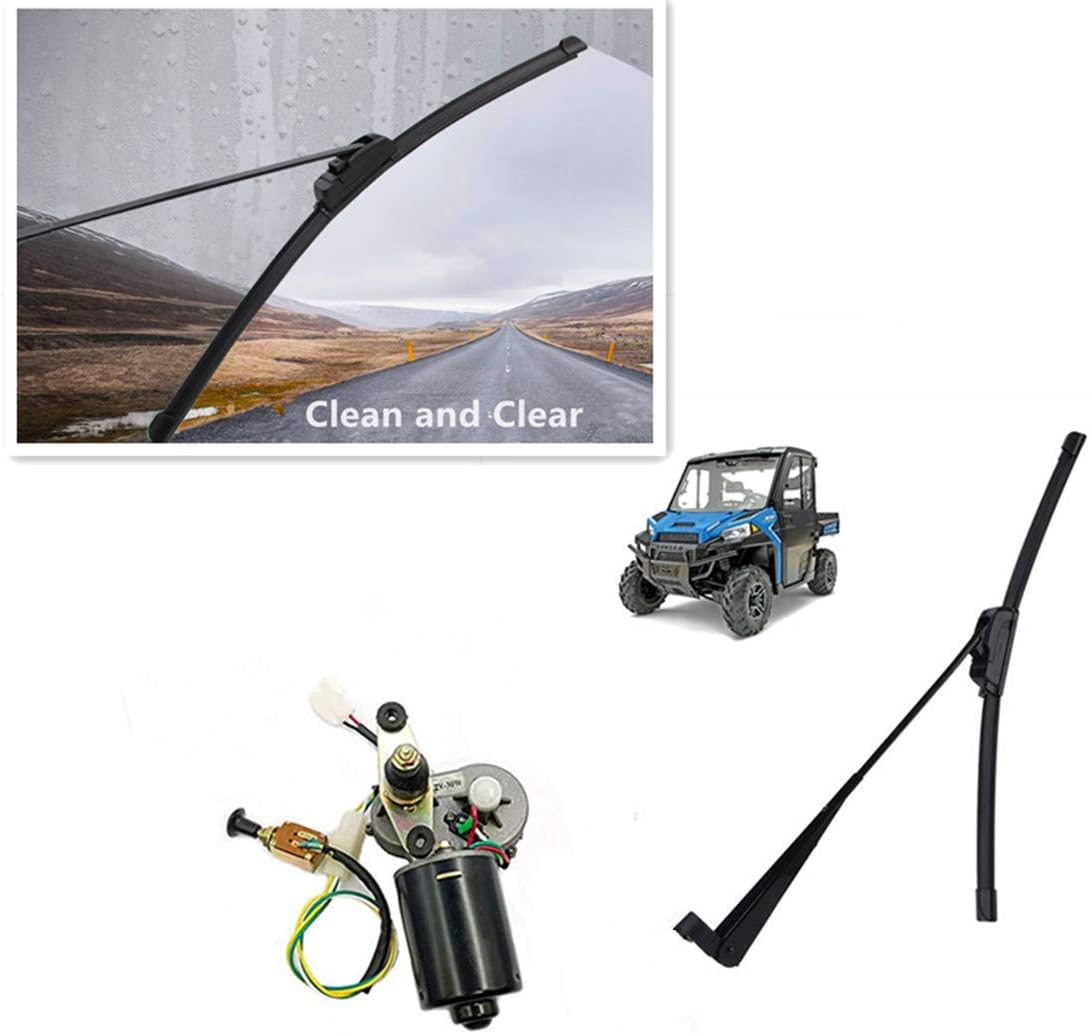

12V Electric Wiper Motor Assembly with Wiper Arm and Blade Z7766
12V Electric Wiper Motor Assembly with Wiper Arm and Blade Z7766
*100% Brand new and High quality - UTV / Tricycle/ Agriculture vehicle Windshield Universal Wiper Motor Kit

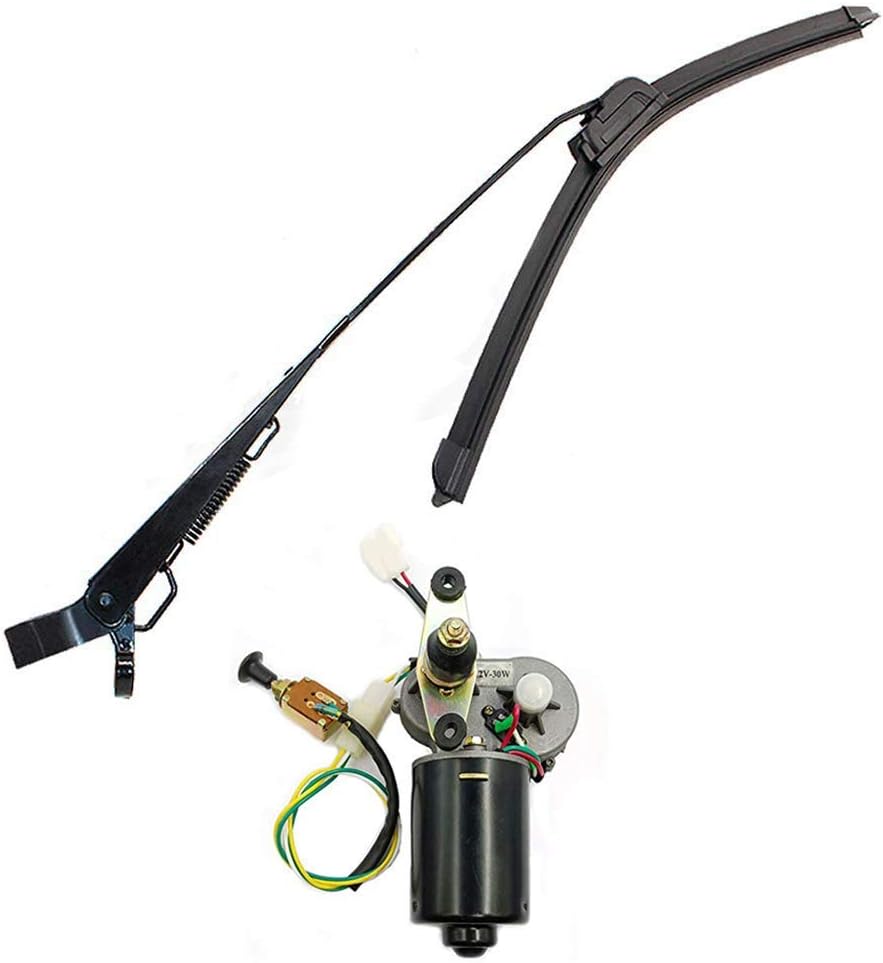

*Package Include : 1 x 12V Electric Motor, 1 x Wiper Arm, 1 x Wiper Blade
*Produced in strict accordance with the original product standards.Automatic Return Function: When you turn off the switch, the wiper blade can automatically return below the windshield without affecting your driving sight
*Soft Rubber Blade, Glide Ssmoothly,Special design reduce noise for silent wiping during all Season such as Rain and Snow ,Made of UV-protected rubber,durable and won’t rust or rattle
*Notice:We a different size wiper arm & blade, you can measure the width and height of the vehicle's windshield and then place the correct size. Any question, just contact us on Q&A section or email to us.
Specification:
Voltage: 12V
Angle of coverage: 90 Degree Wipe Sweep / Angle
Wiper Arm Length: 13.7'(350mm)
Wiper Blade Length: 15.7'(400mm)

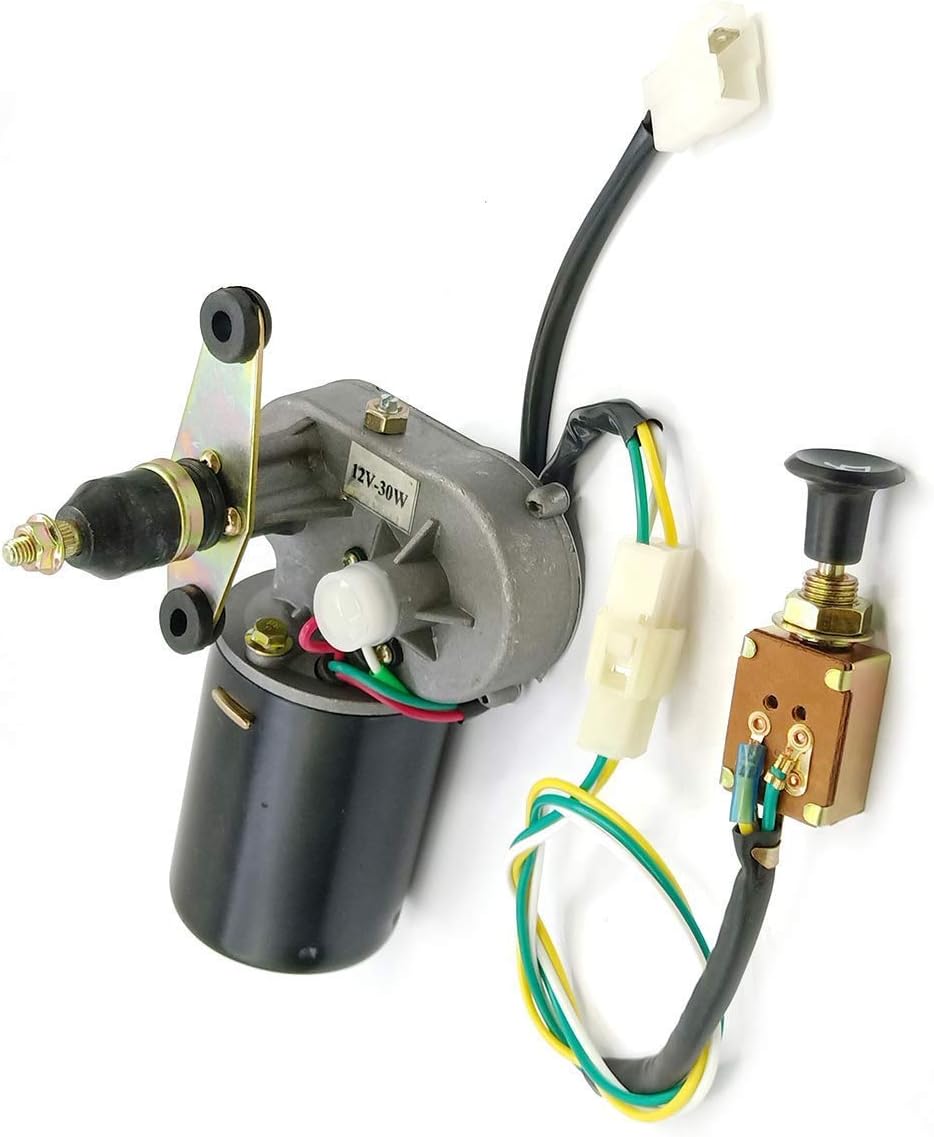

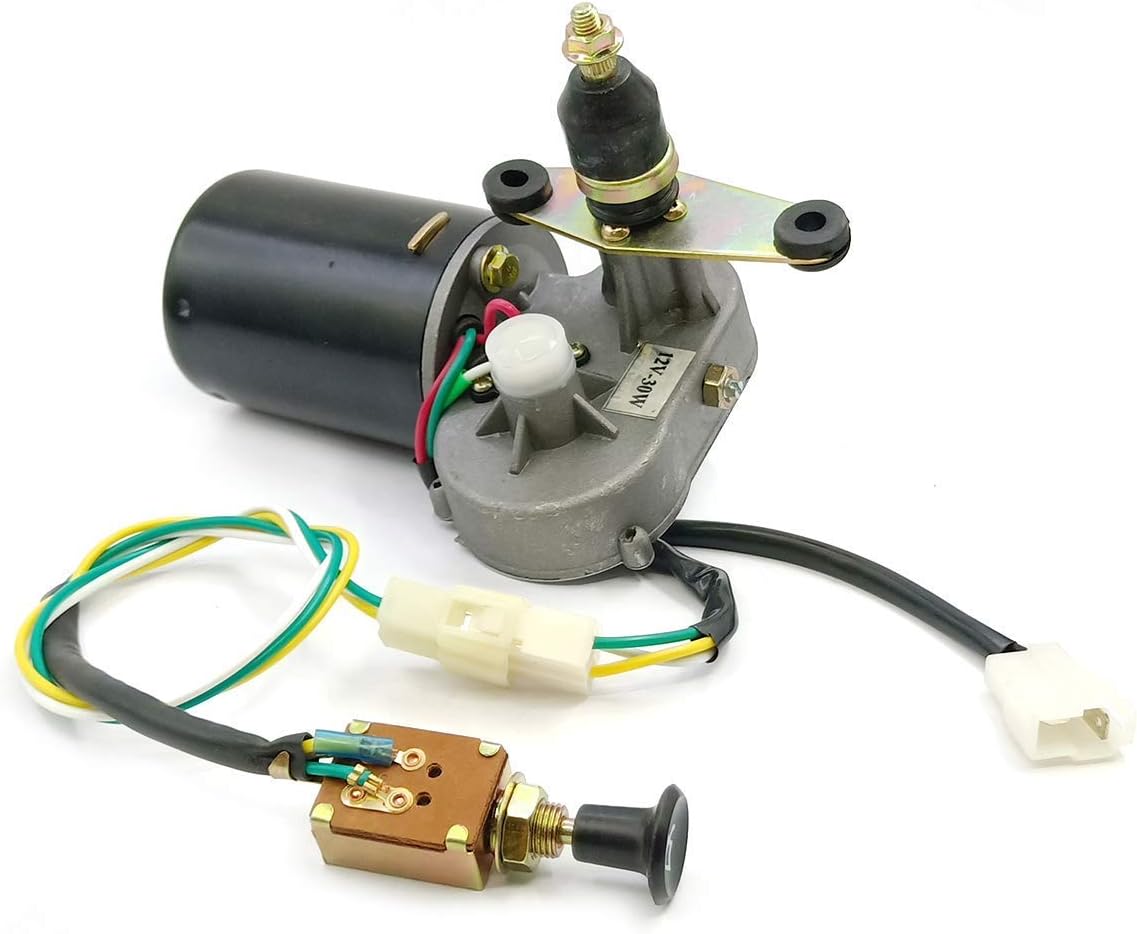

Feature: Integrated ON/OFF switch on back of motor

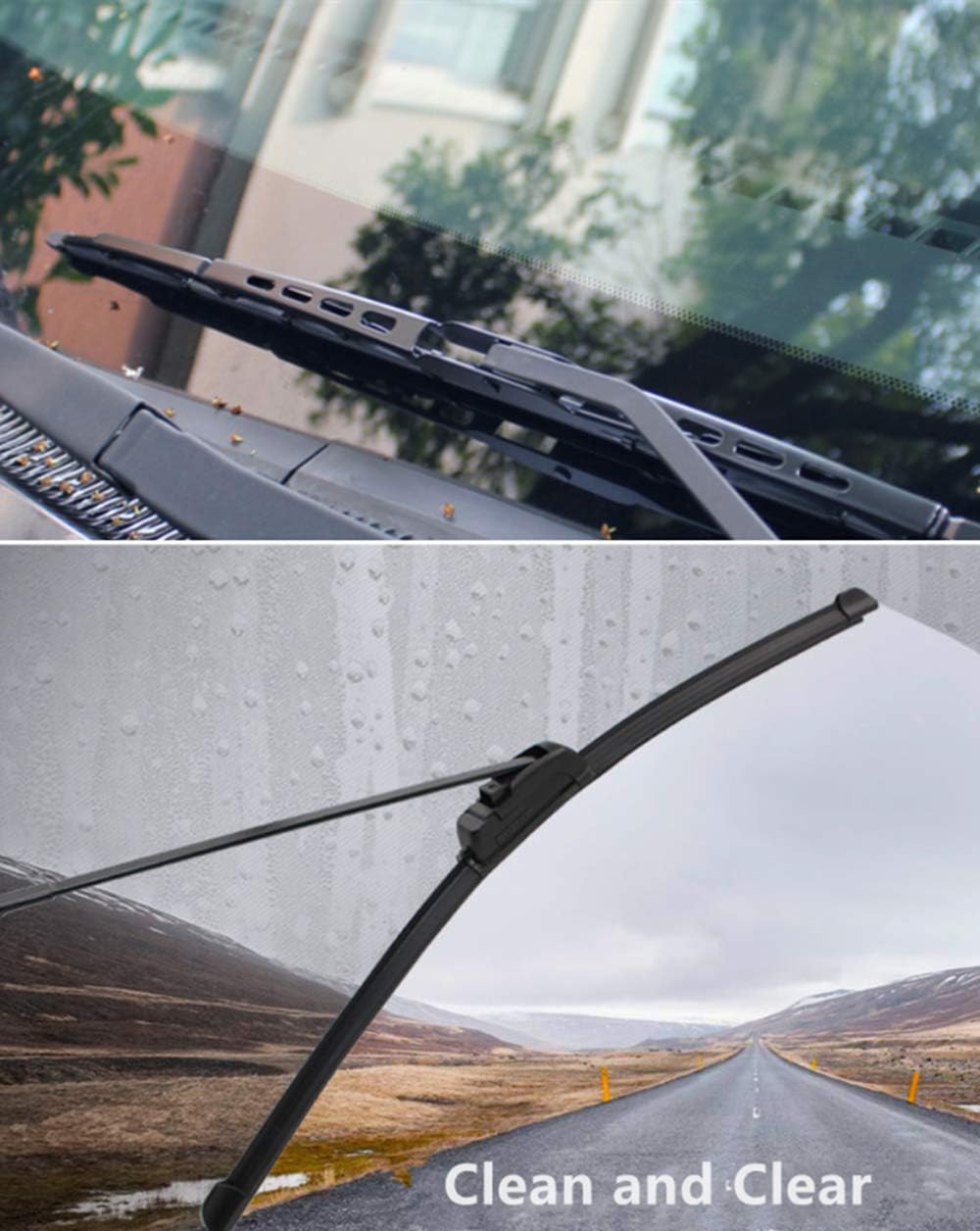

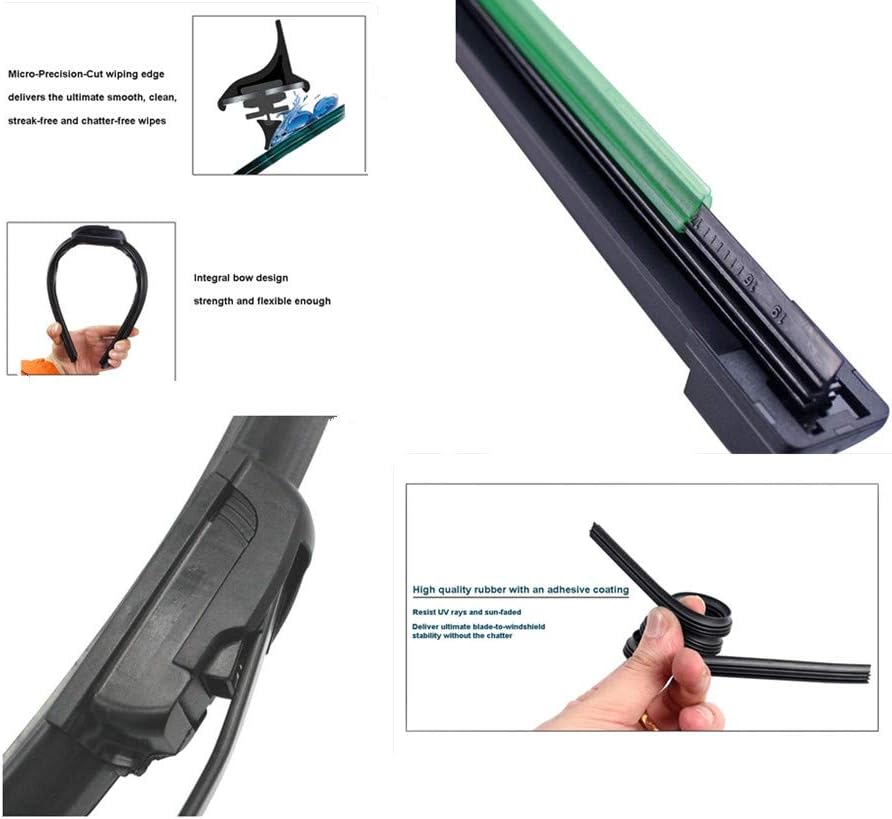

15.7' soft Rubber Blade, glide smoothly, special design reduce noise for silent wiping during all Season such as Rain and Snow Weather
Made of UV-protected rubber,durable and won’t rust or rattle
Installation:
1. Install the wiper arm and wiper blade on the motor, then put the wiper assembly in front of the windshield by hand.
2. Turn on the power supply 12V to the motor, and the wiper motor starts to rotate, the angle of the wiper blade on both sides of the windshield is approximately the same, so that the position of the two mounting holes on the wiper motor can be determined, drill two holes on the iron frame below the windshield according to the position of the two mounting holes.
3. Remove the wiper arm and wiper blade, install the wiper motor on the iron frame with bolts, then install the wiper arm and wiper blade outside the windshield.
4. Connect the wiper motor power cable to the battery or to the headlight 12V power supply along the iron frame.
Fits for:

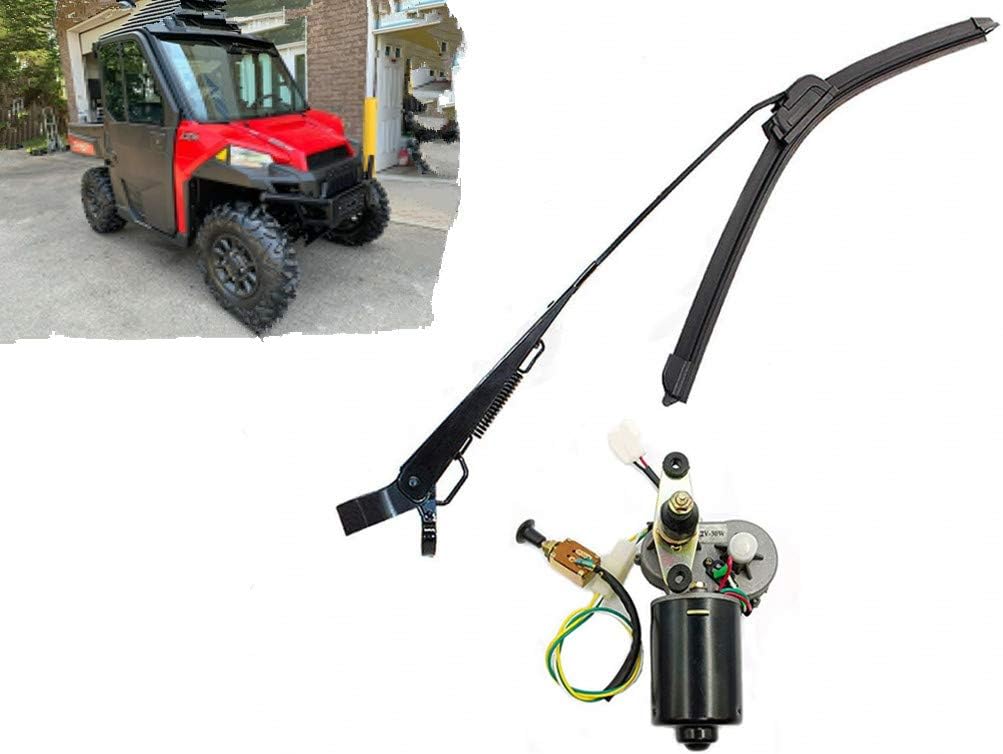

Polaris Ranger 570-1000 utv windshield wiper electric
Polaris RZR 800 900 1000 XP utv windshield wiper electric
Polari General 1000 windshield wiper
Can Am Commander
Can Am MarverickX3
Kawasaki Mule
Kawasaki Teryx
It is NOT fit for a Side- by- Side ATV.
Notice:
1. You should measure the width and height of the windshield of your car and choose the correct size.
2. Please check whether you use 12V DC power on your vehicle, so as to know whether the kit is suitable
